SERIES RTKB IEC Ex (Simtars Australia)

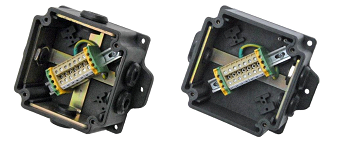

RTKB – 2 RTKB – 1

Features include

•Very high impact resistant glass fiber reinforced Thermoplastic – Polyamide

•Good chemical resistance: see data

•Degree of protection IP66

•Easy fit fixing tabs – (speed up installation and cut down frustration) designed for unistrut, ideal for flat bar, angle irons up to 80mm wide plus large flat surfaces

•3 or 5 entry options – easy to install and easy to terminate

•Enclosure labeling system

SPECIAL NOTE: To minimize the risk of electrostatic discharge, enclosures should not be fitted where they can be subjected to high flow of powder dust that may lead to a prolific charge build up being generated, e.g. pneumatic transfer of powder of discharge spraying. Reference IEC 60079.0:2011 clause 7.4.2. The lid shall have the following warning label applied.

WARNING

Do not open when energized

Potential electrostatic charging hazard

Note: All cable glands and blanking elements e.g. stopping plugs, are separately certified Ex e Ex t as applicable with an ingress protection level of IP66 if fitted as per the manufacturer’s instructions.

IEC Ex

ZONE

0

1

2

20

21

22

For use in

X

X

X

X

ZONE

FLAMMABLE MIXTURE PRESENT

0

1000 hours per year or more (10%)

1

Between 10 and 1000 hours per year or more (0.1% to 10%)

2

Less than 10 hours per year (0.1% to 0.1%)

-

Less than 1 hour per year (less than 0.01%)

SELECTION TABLE

(See Standard Model numbers)

Detail : Rteck terminal boxes are fitted with TS 15 Micro rail terminals

Weidmuller AKZ4 and AKZ1.5 are standard

AKZ4 – 4mm terminal AKZ1.5 – 1.5mm terminal

•Non standard rail options fitted up at customers request as per applicable terminal certification matrix

•Cable glands can be supplied: see Rteck PDF files

•A device fuse option available ≤ 4 amp max (T6) – takes up the space x 3 terminals

Rteck code F - example RTKBF-1

Rteck RTKB-1 Rteck standard terminal box with 3 x 20mm entries

Rteck RTKB-2 Rteck standard terminal box with 3 x 20mm entries plus 2 x 25mm entries with 1 x 25 to 20mm reducer supplied re the 4 x 20mm entry if required.

IMPORTANT : SEE MATRIX with maximum number of terminals withconductor cross section and current reduction of the terminals.

RTKB-1 Rteck standard terminal box with 3 x 20mm entries

Option (1) AKZ4 X 7 terminals plus 2 x earth terminals

RTKB-1-W4-C2 AKZ4 X 4 terminals fitted with 2 x cross connects ( looping / link bars)

Option (2) plus partion plus 2 x earth terminals. Ideal for small lighting and power.

RTKB-1-W1.5-12 AKZ1.5 x 12 terminals plus 2 x earth terminals

Option (3) Ideal for small instrumentation and controls.

RTKB-2 Rteck standard terminal box with 3 x 20mm entries plus 2 x 25mm entries

Option (1) 1 x 25 to 20mm reducer supplied re the 4 x 20mm entry if required.

AKZ4 X 7 terminals plus x 2 earth terminals.

RTKB-2-W4-C2 AKZ4 X 4 terminals fitted with 2 x cross connects (looping / link bars)

Option (2) plus partition plus 2 x earth terminals. Ideal for small lighting and power

RTKB-2-W1.5-12 AK1.5 X 12 terminals plus 2 x earth terminals.

Option (3) Ideal small instrumentation and controls

NOTE : Different rail options will be fitted up at customers request on order.
Fuse option RTKBF-1 / RTKBF-2 available on order
Fuse takes up the space of x 3 terminals
All terminal boxes are supplied standard with the locknuts and stopping Bungs.
Only one terminal box size option available at this stage.
117mm x 117mm x 65mm. Models RTKB-1/2

EXPLOSION PROTECTION:

Explosion protection

Global (IECEx )

Gas and Dust IEC Ex

Ex e IIC T6 Gb IP66

Ex em IIC T6 Gb IP66

Ex tb IIIC T80ºC Db IP66

TECHNICAL DATA:

ELECTRICAL DATA

Rated operating voltage

Terminal boxes RTKB-1 > RTKB-2 without equipment fuse

max 500V AC /DC Depending on terminals used.

Terminal boxes RTKBF-1 /2 with equipment fuse max 500V

AC/ DC Depending on terminals used.

MATRIX:

RTKB enclosure configuration Tables:

Encl Power dissipation

(W)

Term Rt
AKZ1.5 (Ω)

Rc – 1.5mm2

Cable Ω/m

Term Rt
AKZ4.0 (Ω)

Rc – 4mm2

Cable Ω/m

Cable length “L” (m)

5

0.00041

0.0165

0.00029

0.00561

0.13

Terminal resistance values specified as per certificate IECEx SIR 05.0038U

Cable resistance values specified as per Table 34 of AS/NZS 3008.1.1:2009

Formula applied for calculation of power (pwr) per terminal + cable is P = I2 (Rt + L x Rc)

Table 1: Model and Temperature Classification

Applied max Current

(Amps)

Power per AKZ 1.5

Terminal + cable

Power per AKZ 4.0

Terminal + cable

1

0.002555

0.0010193

3

0.022995

0.0091737

4

0.04088

0.0163088

6

0.09198

0.0366948

8

0.16352

0.0652352

10

0.2555

0.10193

12

0.1467792

14

0.1997828

16

0.2609408

18

0.3302532

20

0.40772

22

0.4933412

Calculated total maximum power dissipation for enclosure = the sum of the individual calculated power for each terminal and cable combination.

Note: Total combined power dissipation not to exceed 5W.

Table 2: Maximum Enclosure Configuration

Maximum enclosure configuration & respective current values
for a calculated maximum power dissipation not exceeding 5 W

Applied max
Current to respective terminal (A)

Maximum number
of Terminals Fitted in combination
at specified applied current

Fuse
Type 8560 (4A)

AKZ 1.5

AKZ 4

AKZ 1.5

AKZ 4

10

22

6

7

1

10

22

12

3

1

10

20

9

6

1

10

20

12

4

1

9
