Disconnecting Type Fuse Terminals

ELMEX RAIL TERMINALS

DISCONNECTING TYPE FUSE TERMINALS

KUDF 4


Ratings
Conductor Size
Thickness, T
 : 500 V AC/DC; 6.3 Amps
: 0.5 - 4 sq.mm
: 8 mm
  • Clip-on arrangement for mounting on 35 mm & 32 mm DIN channel

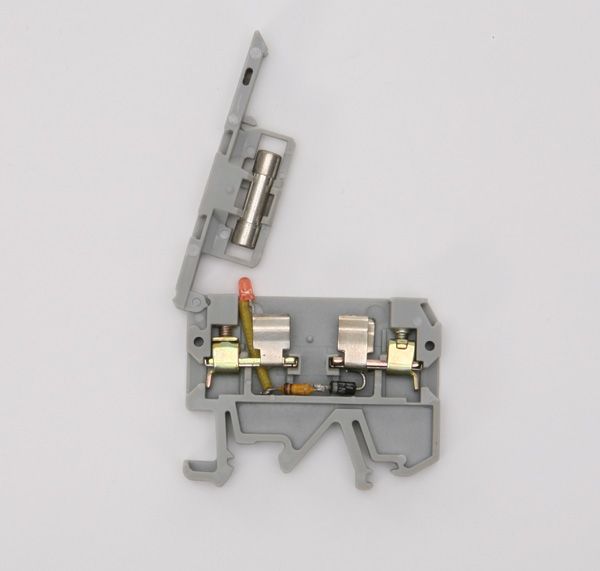

  • Also available with LED indicator for blown fuse. Standard Circuit voltages : 24V DC, 48V DC, 110V AC & 240V AC
  • It can be used as Connect/Disconnect Terminal with the use of links in place of fuse
  • Compact Design - Fuse holder & Terminal Combined in one module giving cost, time and space economy
  • Replacement of fuse : Quick & safe
  • Standard Glass Cartridge Fuse of 5 x 20 mm and 5 x 25 mm can be used
  • Terminal with Heat Treated Contact Clamps having 1.5 times the Rated Torque With standing Capacity

TECHNICAL DATA

Disconnecting Type Fuse Terminal : KUDD 4
Ratings
Conductor Size
Insulation Stripping Length
H (when mounted on 32mm Channel) x WxT
H² (when mounted on 32mm Channel) x WxT
Torque required for Screw
Standard Packing
Suitable lug

Insulation Housing
Standard Colour
: KUDF 4
: 600 V AC/DC : 6.3 Amps
: 0.5 sq. mm to 4 sq mm
: 9 mm
: 48.5 mm x 58mm x 8mm
: 44.5mm x 58 mm x 8 mm
: 5.0 kg.Cm*
: 100 Nos.
: 2.5 sq mm = WPC -7 Dowell’s or equiv.
4 sq mm - WPC - 16 Dowell’s or equiv.
: Industrial grade Thermoplastic-Nylon 66
: Beige
ACCESSORIES
Mounting Channel

CHS CHK 		CHS : 32 mm Thickness : 1.5 mm
CHK : 35 mm Thickness : 1.0 mm
Material: CRCA - Steel
Plating : Alkaline Zinc with Yellow Passivation
Type : Length
CHS-3 : 300mm
CHS-5 : 500mm
CHS-10 : 1mtr.
CHS-20 : 2mtr.
CHK-3 : 300mm
CHK-5 : 500mm
CHK-10 : 1mtr.
Lengths - 300 mm - 500 mm - 1 Mt. - 2 Mt.
Also available in other lengths - on request.
Side Clamps




SCS SCSN SCKN SCUN 		Type :
SCS : Metallic : For CHS, Thickness: 11 mm
- Standard Pkg : 200 Nos.
SCSN : Nylon 66 : For CHS, Thickness : 8.4 mm
- Standard Pkg : 100 Nos.
SCKN : Nylon 66 : For CHK, Thickness : 8 mm
- Standard Pkg : 100 Nos.
SCUN : Nylon 66
- Standard Pkg : 100 Nos
End Plate Type : EP -DF
- Material : Nylon 66 (Thermoplastic)
- Thickness : 1.5 mm
- Standard Packing : 100 Nos.
Comb Type Shorting Link Type: USFL
- Material : Nylon 66 (Thermoplastic)
- Thickness: 1.5mm
- Standard Packing : 50 Nos.
Disconnecting Link Type : DL -4
- For Connect - Disconnect Application
- Size : 5 x 20 mm
Marking Label Type : LABEL - A
- Up to 3 Digits / Combination of alphanumeric / Blank
- Material : PVC
- Standard Packing : 100 Nos.
Snap on Type Marking Label Type : LABEL - K 8.0
Group Marking Carrier Type : GMC
- For Channel type CHS

*Withstanding Capacity of 1.5 times the value of Testing Torque mentioned in IEC - 947

Technical Specifications may change in line with Technical Advances and Industry Standards
