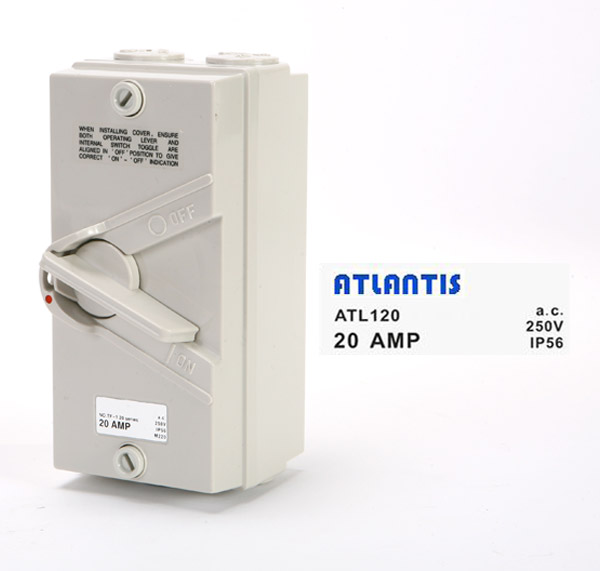

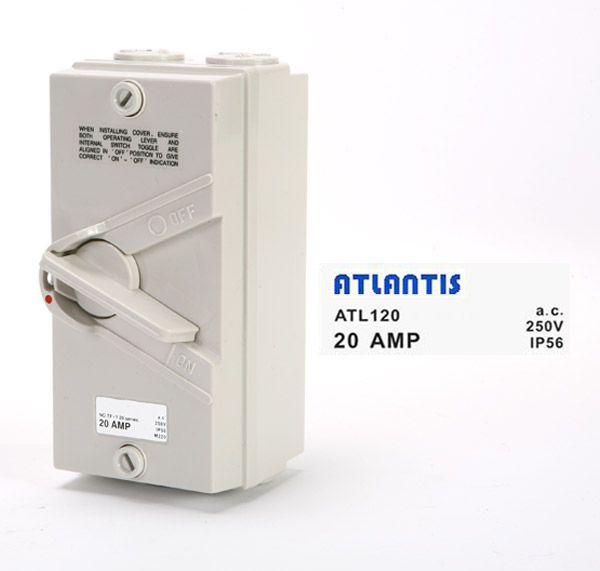

The Atlantis Series of weather proof isolators is an economical switch range catering to air conditioning / heat pumps, spa / swimming pools, outdoor lighting and in fact most applications where an IP rated isolator is required. The IP56 rating allows these units to be installed internally or externally with confidence.
Enclosure made from quality UV stable, durable and fire resistant material with fitted neutral and earth connection bars. Top and bottom threaded cable entries and plenty of room inside helps with easy installation. Pad lockable for extra safety. Available in single and three pole configurations in 20 and 35amps 230 / 415VAC 50Hz.
Features:
Top cover secured with only 2 screws allowing for quick installation.
Top cover and base sealed with heavy duty non-shrink rubber gasket.
Threaded cable entries top and bottom sealed with rubber “O” rings.
Fixed earth and neutral connection bar with double screws per terminal.
All terminals accept cables up to 16mm.
IP56 rating.
Can be padlocked in the “OFF” position for security purposes.
TECHNICAL SPECIFICATIONS
Code
--------------------------------------------------------------------------------------
ATL 120 1pole 20amp 250VAC 50Hz surface mount switch
16mm terminals M Rating 220 IP56
--------------------------------------------------------------------------------------
ATL 135 1pole 35amp 250VAC 50Hz surface mount switch
16mm terminals M Rating 220 IP56
--------------------------------------------------------------------------------------
ATL 320 3pole 20amp 440VAC 50Hz surface mount switch
16mm terminals M Rating 180 IP56
--------------------------------------------------------------------------------------
ATL 335 3pole 35amp 440VAC 50Hz surface mount switch
16mm terminals M Rating 180 IP56
--------------------------------------------------------------------------------------
ATL 120M Mini Isolator - 1 pole 20amp 250VAC 50Hz surface
mount switch IP66
--------------------------------------------------------------------------------------
IEC 60947
