LUCA and Elettrocanali Series IP40 Wall Mounting Switchboards

Plastic Wall Mounting Switchboards

  • Protection rating IP 40 (only when closed front equipment is installed in models without doors)
  • material
    • self-extinguishing thermoplastic colour grey Ral 7035
    • resistant to abnormal heat and fire up to 650°C (glow-wire test) according to standards IEC 695-2-1
    • resistant to chemical agents (water, saline solutions, acids, bases and mineral oils)
    • high resistant to UV rays
  • dimensional stability under continuous working conditions from -25° to +85°C shockproof to 6 Joules
  • available without door 2, 4 & 6 modules and anti-glare transparent door 8, 12, 24 & 36 modules
  • inlet suitable for wiring ducts up to 200 x 60, cable glands, conduit
  • enclosures designed to allow easy and tidy wiring and component installation
  • possible to install devices with a depth of 53 and 68mm on switchboards 8-12-24 modules and devices up to 75mm on 36 module version
  • reversible door
  • neutral and earth terminals may be fitted (See separate codes below)
  • switchboards are designed and manufactured as per CEI 23-48 and 23-49, IEC 670 standards

2 MODULES
Code 		Dimensions (mm)

W x H x D

5412352 50 x 160 x 65


4 MODULES


Code

 Dimensions (mm)

W x H x D

5412352 95 x 160 x 65
49554with N & E Busbars


6 MODULES


Code

 Dimensions (mm)

W x H x D

5412356 140 x 160 x 65
49556with N & E Busbars


8 MODULES


Code

 Dimensions (mm)

W x H x D

5412308
198 x 178 x 100

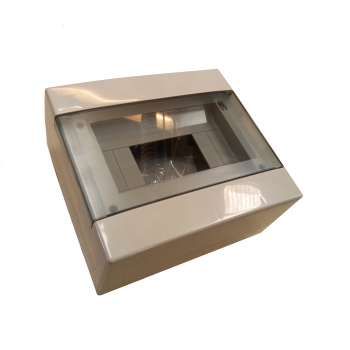

49577with N & E Busbars


12 MODULES


Code

 Dimensions (mm)

W x H x D

5412312 305 x 200 x 95
49578with N & E Busbars


24 MODULES


Code

 Dimensions (mm)

W H D

5412324 305 x 350 x 95
49579with N & E Busbars


36 MODULES


Code

 Dimensions (mm)

W H D

5412336305 x 500 x 120
49580with N & E Busbars
