LUCA Stagna Series

Stagna Series LUCA

Stagna Series

  • AVAILABLE WITH CABLE GLAND OR WITH PLAIN SIDES
  • PROTECTION RATING - IP 44 for boxes with snap-on covers
  • IP 55 for boxes with screw-on covers
  • DOUBLE-INSULATION FEATURE
  • COLOUR: GREY RAL 7035
  • MANUFACTURED IN SELF-EXTINGUISHING THERMOPLASTIC MATERIAL TO STANDARDS UL94V-0 AND RESISTANT TO ABNORMAL HEAT AND FIRE UP TO 960°C (glow-wire test) ACCORDING TO STANDARD IEC 695-2-1
  • DIMENSIONAL STABILITY FROM -20° TO +60°C
  • RESISTANT TO SHOCK, CHEMICAL AGENTS AND WEATHERPROOF
  • WIDE RANGE OF SNAP-ON COVERS, COVERS WITH METAL SCREWS AND NYLON SCREWS, IN OPAQUE OR CLEAR POLYCARBONATE
  • SPECIAL-DESIGN METAL AND POLYAMIDE NON-LOOSENING SCREWS
  • THE COVERS FITTED WITH POLYAMIDE SCREWS CAN BE HINGE-MOUNTED TO THE RELATIVE BOXES BY MEANS OF HINGE SUPPLIED SEPARATELY
  • ALL BOXES DESIGNED TO TAKE TERMINALS AND VARIOUS FITTINGS
  • THE BOXES ARE IMQ APPROVED ACCORDING TO STANDARD CEI C431
  • ITALIAN REGISTER OF SHIPPING n.5/162/91

SNAP-ON COVERS Part No.
 		Inside Dimensions (mm)
50820 80 80 40
50826 100 100 50

COVER WITH METAL SCREWS Part No. Inside Dimensions (mm)
50856 100 100 50
50860 105 70 50
50861 100 100 80

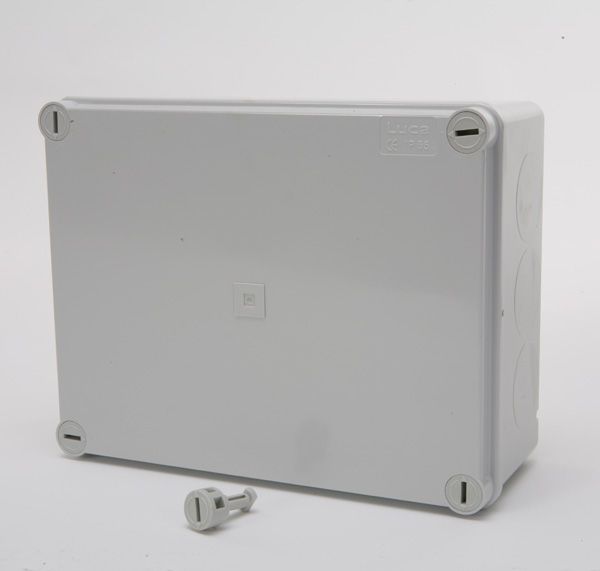

COVER WITH PLASTIC SCREWS Part No. inside Dimensions (mm)
50862 153 110 66
50864 160 135 77
50866 220 170 80
50868 310 240 110

HIGH COVER WITH PLASTIC SCREWS Part No. Inside Dimensions (mm)
50870 160 135 150
50872 220 170 150
50874 310 240 160

CLEAR COVER WITH PLASTIC SCREWS Part No. Inside Dimensions (mm
50882 153 110 66
50884 160 135 77
50886 220 170 80
50888 310 240 110

CLEAR COVER WITH PLASTIC CREWS Part No. Inside Dimensions (mm)
50890 160 135 150
50892 220 170 150
50894 310 240 160

METAL MOUNTING PLATES Part No. FORMICA MOUNTING PLATES
Part No.




Inside Dimensions (mm)


50910 19710 Boxes 160 x 135
50912 19712 Boxes 220 x 170
50914 19714 Boxes 310 x 240
