LUCA Europa Series Junction Boxes

EUROPA SERIES LUCA

Polycarbonate Junction boxes

  • degree of protection IP 65
  • special double insulation feature
  • colour: grey Ral 7035
  • manufactured from polycarbonate self-extinguishing material in accordance with UL 94 V-2 and resistant to abnormal heat and fire up to 850°C (glow -wire test) in accordance with IEC 695-2-1
  • dimensional stability under continuous working conditions from -20°C to +115°C
  • resistant to shocks of 20 Joules
  • resistant to chemical (water, saline solutions, acids, bases and mineral oils) and atmospheric agents
  • high resistance to UV-rays
  • inlets on all sides for cable, conduit, cable glands
  • suitable for installation in environments with high fire risk (CEI 64-8 V2) and in AD-FT environment (CEI 64-2 IV

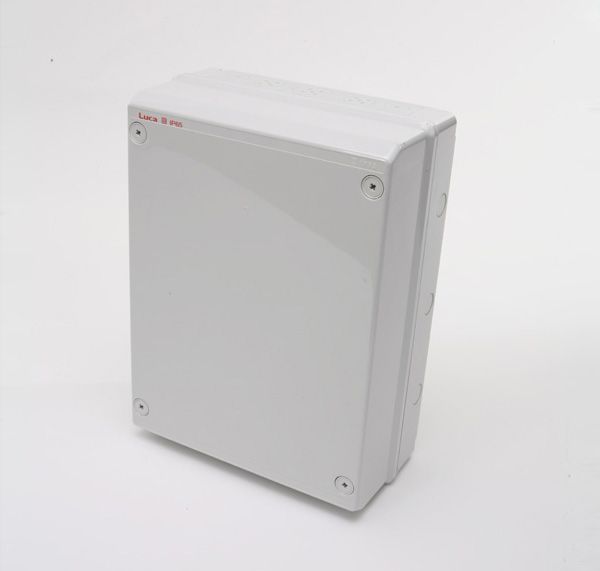

Junction Boxes IP 65
Opaque

Article

Dimensions (mm)

W H D
12804 140 220 140
12808 205 220 140
12812 275 220 140
12814 275 370 140
12816 275 570 140
12818 380 570 140


Mounting panels
Formica

Article For boxes

W H

Dimensions (mm)
W H
12842 140 220 80 116
12844 205 220 117 147
12845 275 220 117 217
12846 275 370 217 266
12847 275 570 217 466
12848 380 570 322 466


Mounting panels
Zinc plated metal

Article For boxes
W H
Dimensions (mm)
W H
128425 140 220 80 116
128445 205 220 117 147
128455 275 220 117 217
128465 275 370 217 266
128475 275 570 217 466
128485 380 570 322 466


Clear hinged door

Article

Dimensions (mm)

W H D

12792220 275 140
12794370 275 140


Example of wall fixing directly from inside of box or by brackets. Item 12858

Example of inner plate mounting

Semi Flush Frames available
Codes from 5462500-5462507
