HAGER Vector/Imperia Series

HAGER Vector/Imperia Series

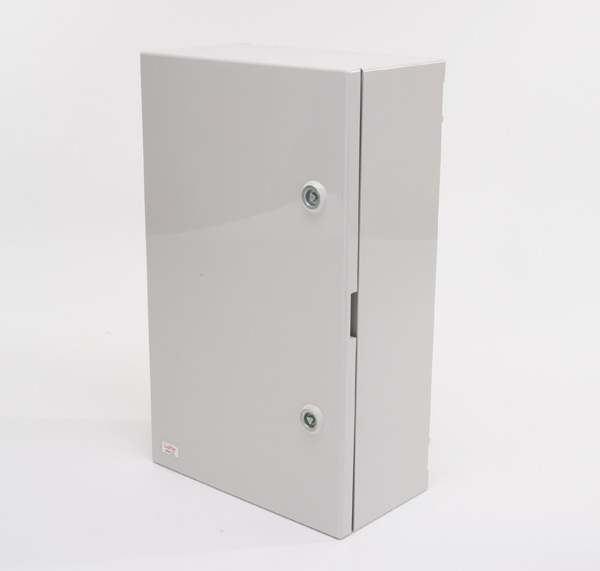

Polycarbonate Cabinets

  • Protection rating IP 65 colour grey RAL 7035
  • Made in one piece self-extinguishing polycarbonate V2 rating as per UL 94 standards, resistant to abnorrnal heat and fire up to 850°C (glow wire test) according to ICE 695-2-1 standards
  • Continuous working temperature from -20°C up to +115°C
  • Shockproof to more than 20 joules
  • High resistance to UV , weatherproof and resistant to chemical agents (water, saline solutions, acids, bases and mineral oils)
  • Hinge mounted front door fitted with a continuous injection polyurethane gasket, equipped with two triangular locks, 140° opening. The door is available in colour grey Ral 7035 or transparent anti-glare. Enclosures having height 350mm are provided with a central lock.
  • Key lock handle available separately
  • Adjustable brackets provided for fixing panels, and frames for modular components. Adjustable to 2 or 3 positions.
  • Wall-mounting by fitted brass inserts and mounting brackets provided.
  • Designed and manufactured as per CEI C431 - IEC 670 standard

Opaque Door
 Transparent Door Dimensions (mm)
W x H x D		 MCB way
12900 12910 250 x 350 x 160 20 (2X10)
12903 12913 300 x 500 x 160 36 (3X12)
12905 12915 400 x 500 x 210 54 (3X18)
12907 12917 400 x 650 x 210 72 (4X18)
