HAGER Orion/Monaco Plus Series

HAGER Orion/Monaco Plus Series

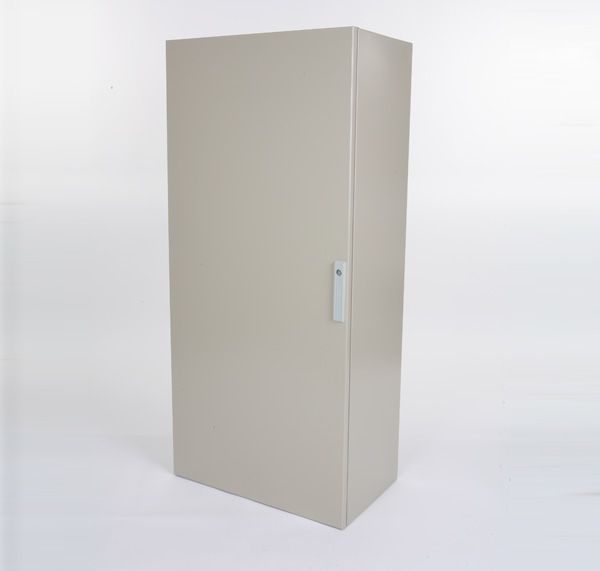

Metal Cabinets

  • Degree of protection IP 65
  • Colour: grey Ral 7032
  • Manufactured from press-formed and robotically welded 15/10 steel plate
  • Hinged mounted front door fitted with a continuous injection polyurethane gasket, equipped with external triangular locks, 140° opening. Cabinets with height of 300/350 are supplied with one lock
  • Internal panels and vertical supports are fitted directly to the cabinets
  • Cable gland plate with sealing gasket on bottom
  • Pre-drilled holes on back of unit for wall-mounting. Wall mount brackets also supplied
  • Earth connection terminal between door, body and metal internal panel. Bonding link supplied
  • Phosphate undercoating and epoxy-polyester paint finish
  • Suitable for installation in environments with high fire risk (law CEI 64-8 V2)
  • Single package in carton box
  • Enclosures are IMQ approved in accordance with CEI C431
  • Approved RINA No 5/164/91
  • Manufactured in accordance with IEC standards
  • Internal metal or insulated panels, hinged extractable frames, slide rails, modular plastic perforated or blank DIN rail plates, key lock handles, ventilator fans, vents and filters, anti condensation cabinet heaters all available separately



Metal Cabinets IP 65

Dimensions (mm) W x H
All 350 deep
Code Panel
Code
1300 x 600 17450 17514
1300 x 850 17455 17524
1600 x 600 17452 17516
1600 x 850 17456 17526
1900 x 600 17454 17518
1900 x 850 17458 17528
Plinth - 600 17490
Plinth - 850 17491
Slide Rails 17674
Wall Mount Brackets 17860
Ley Locks 17688


Accessories
Hinged extractable frames, Modular perforated plates with DIN rail and modular blank plates all available on request.
