HAGER Orion Series

HAGER ORION (was "LONDRA SERIES")

  • Reinforced Polyester Cabinet
  • Modular Series
  • Degree of protection IP 65
  • Colour: grey Ral 7032
  • Double insulation feature
  • Manufactured in one piece from glass fibre reinforced (SMC) polyester, self-extinguishing and halogen-free
  • Hinge mounted front door fitted with a continuous injection polyurethane gasket, equipped with triangular locks, 180? opening. Cabinets with height of 300/350 are supplied with one lock
  • Internal panels and vertical supports are fitted directly to the cabinets
  • Pre-drilled holes on back of unit for wall-mounting. Wall mount brackets also supplied
  • Manufactured in accordance with the new draft standard CEI C431
  • Suitable for installation in environments with high fire risk (CEI 64-8 V2) and in AD-FT environments (CEI 64-2 IV edition)
  • Individually wrapped and packed in cardboard cartons
  • Enclosures are IMQ approved in accordance with CEI C431
  • Approved RINA No. 5/164/94
  • Manufactured in accordance with IEC standards


MECHANICAL, ELECTRICAL AND CHEMICAL FEATURES

  • Self-extinguishing material in accordance with UL 94 V-O
  • Resistant to shock of 20 Joules
  • 15 kV/cm dielectrical rigidity
  • Specific resistance of 10cm
  • Temperature resistance between -40C and +110C
  • Resistant to all chemical and atmospheric agents
  • Water absorption 0.15%
  • Glassfibre contents 25%
  • Glassfibre length 25mm
  • Internal metal or insulated panels, hinged extractable frames, slide rails, modular plastic perforated or blank DIN rail plates, key lock handles, ventilator fans, vents and filters, anti condensation cabinet heaters all available separately

Hager Orion Series

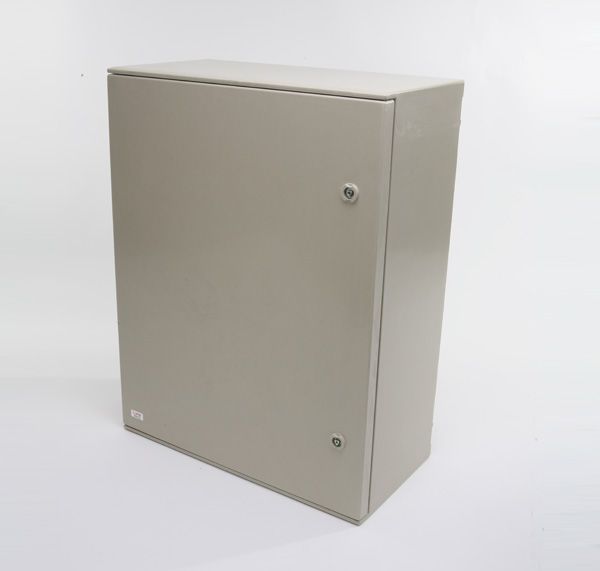

Glass resin cabinets IP 65 with opaque door


Article
with opaque
door 		Article
with transparent
door 		Dimensions (mm)
W x H x D 		Modules
H 150 		No. of
ways 		Standard
package
16204 16254 300 x 350 x 160 2 x 10 20 1
16209 16259 300 x 500 x 200 3 x 16 48 1
16213 16263 400 x 500 x 200 3 x 16 48 1
16216 16266 400 x 650 x 200 4 x 16 64 1
16221 16271 500 x 650 x 250 4 x 22 88 1
16229 16279 600 x 800 x 300 5 x 26 130 1

* Made from self extinguishing polyester.

Accessories
Fixed DIN rail frames, Modular perforated plates with DIN rail and modular blank plates available on request.
17850 Plastic 3 way Lume Key
17852 Aluminium 3 way Lume key
17863 Wall Mount Brackets
