HAGER Cabinet Fans & Heaters

HAGER Cabinet Fans & Heaters

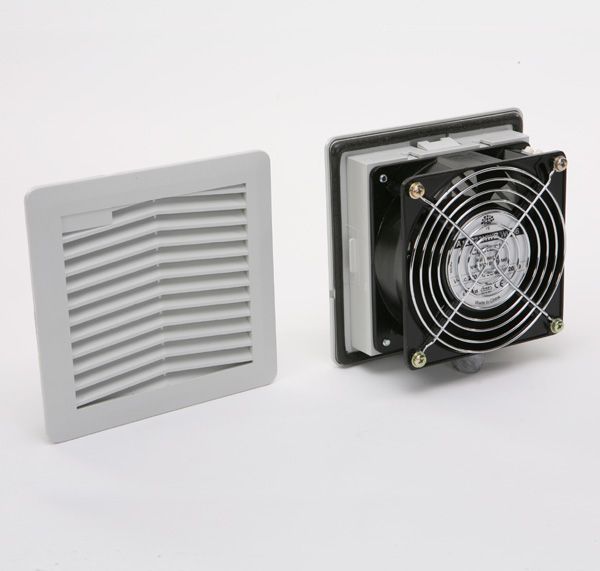

Ventilator for cabinets

  • body made of reinforced polyamide colour grey Ral 7032
  • protective mesh against contact with foreign bodies
  • external removable vent complete with gasket
  • 220V 50/60Hz
  • operates from -20 to +60 degrees C
  • noise level 44 to 51 dB (70dB for article 17216)
  • life approximately 20.000 hours in continuous operation
  • degree of protection IP 54; fitted with gasket, ventilator in vertical position and with horizontal air flow (article 17216 has the degree of protection IP 44)
  • complete with vent, replacement filter and gasket]

Article Power Dimensions(mm) Capacity with free flow Standard Package
17210 20 W 150 x 150 57 m³/h 1
17212 20 W 250 x 250 115 m³/h 1
17214 29 W 250 x 250 240 m³/h 1
17216 67 W 320 x 320 520 m³/h 1

The standard ventilator inhales air from outside and blows it inside. (Attn. in items 17210/12/14 is possible to reverse the air flow by rotating the fan blade through 180° degrees)

Vents

complete with filter and gasket

Article Dimensions (mm)
W x H x D
Standard package
17220 130 x 130 x 23 1
17224 255 x 255 x 38 1
17226 323 x 323 x 38 1


Replacement Filters

Article Discriptions Standard package
17230 filter for article 17210 - 17220 1
17234 filter for article 17714 - 17224 1
17236 filter for article 17716 - 17226 1


Heaters for cabinets

  • case made from anodized aluminium with vertical fins for optimum heat transmission
  • 100-240 V AC-DC
  • internal safety thermostat - 70°C
  • clip on to DIN rail or fit directly using holes provided
  • complete with 0.75mm cable, length 400mm
  • reduces condensation on inside walls of cabinets and on electrical and electronic components, thus inhibits corrosion
Article Power Dimensions (mm)
W x D x H
Standard Package
17252 15 W 25 x 47 x 70 1
17253 30 W 25 x 47 x 100 1
17254 45 W 61 x 65 x 105 1
17255 80 W 61 x 65 x 155 1
17256 150 W 60 x 60 x 150 1


Three way plastic and aluminium lock keys.

17850 Plastic 3 way Hager key

17852 Aluminium 3 way Hager key
